Product Description: Zoomlion ZAT3500V All‑Terrain Crane

Overview

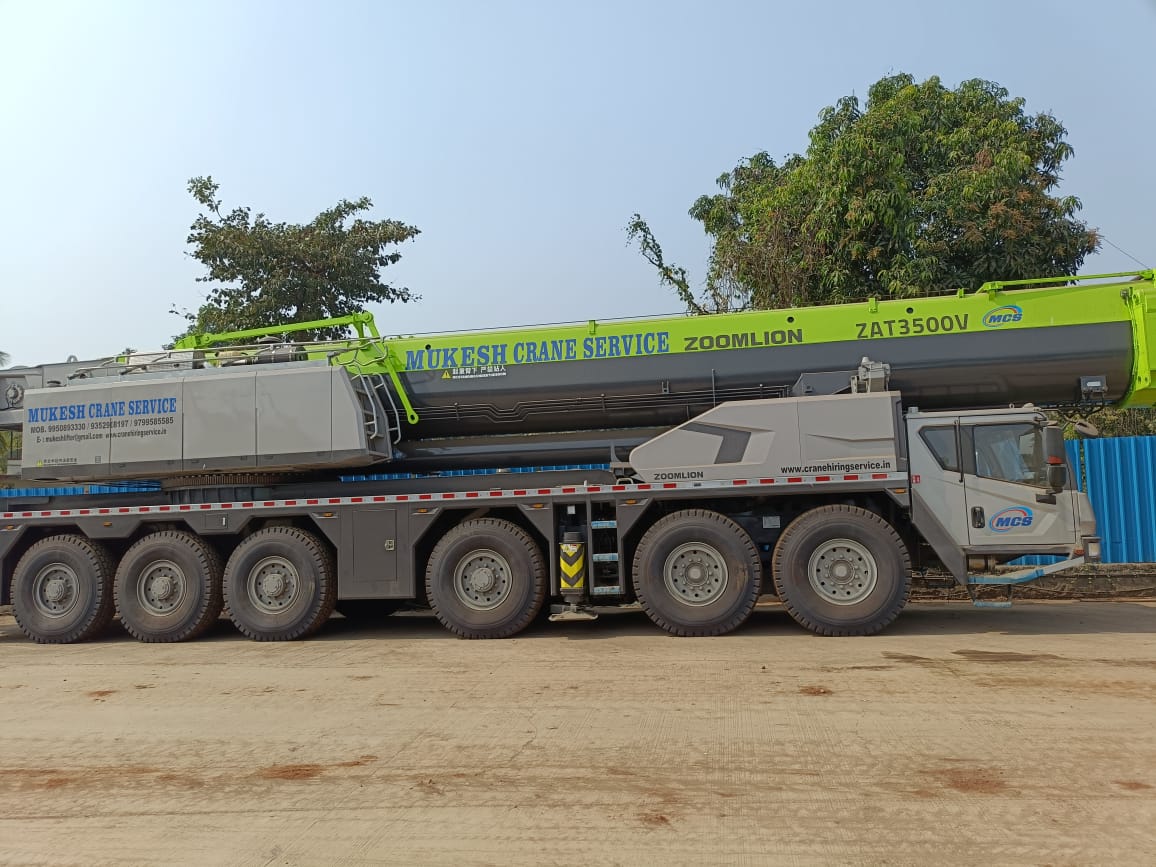

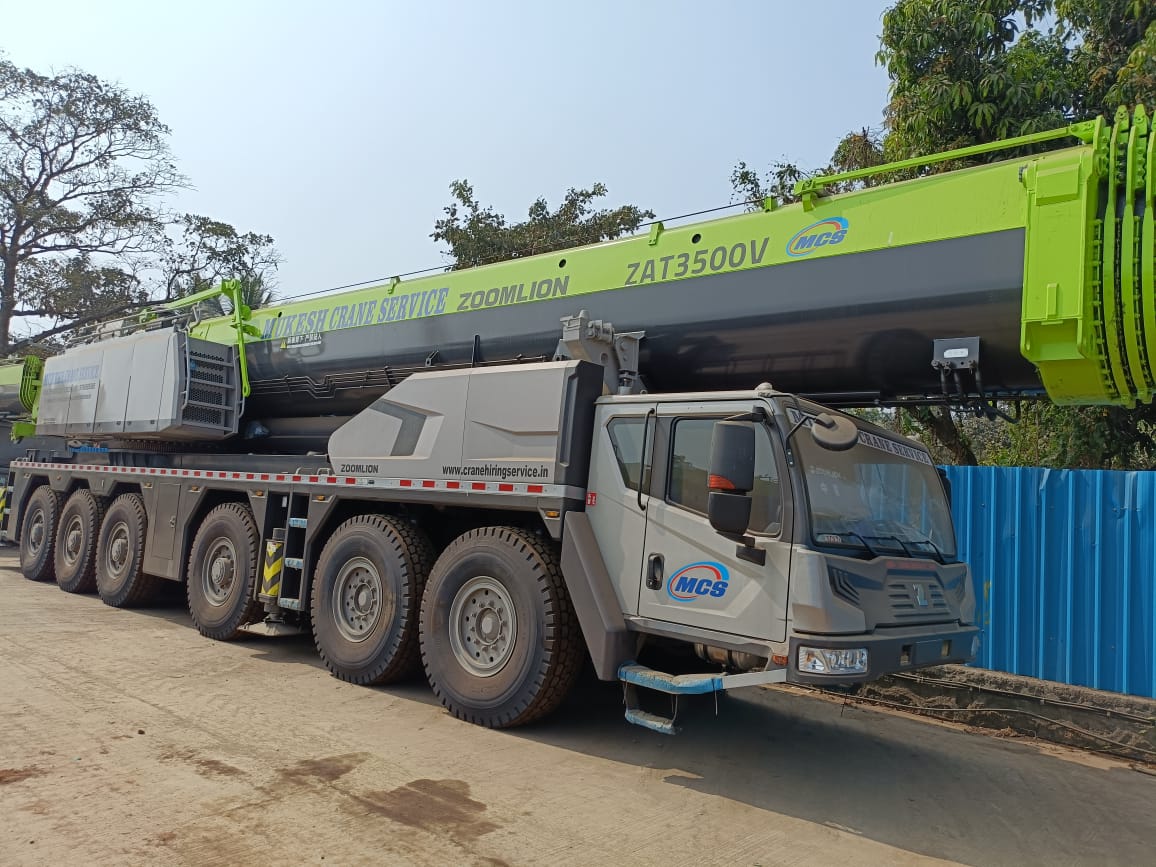

The Zoomlion ZAT3500V is a powerful all-terrain crane rated for 350 tons of lifting capacity. Built on a robust 6-axle chassis, it delivers a blend of mobility, reach, and power that makes it ideal for heavy-duty construction and industrial operations.

Key Specifications

• Maximum Rated Lifting Capacity: 350 t

• Main Boom Length: Approximately 85 m, with a jib length of around 17.5 m

• Maximum Lifting Height: Up to 113 m when fully equipped with jib

• Max Lifting Moment: About 4,704 kN·m (approx. 480 t·m), highlighting its immense lifting force

• Vehicle Dimensions: Length ~17 m, Width ~3 m, Height ~4 m; Kerb weight ≈ 72,000 kg

• Performance Attributes:

  • Drive Speed: Up to 80 km/h — excellent for job site mobility

  • Wheel Formula: 12×4 configuration for robust drivability

  • Transmission: Fast 12-speed gearbox with hydraulic retarder for smooth operations

  • Counterweight: Approx. 36–49 t, aiding stability and lift balance

Design & Build Features

• Boom Design: Oval-shaped, large cross-section boom that enhances strength and reduces bending stress; industry-leading design with high load moment capacity

• Versatile Operation: Balances speed, power, and micro-mobility — suitable for diverse site conditions

• Quality Assurance: Supplied with inspection reports and optional video demonstrations from the manufacturer (Beimei Machinery); production capacity is typically 1 unit/week

Applications

• Ideal for large-scale lifting tasks such as installing prefabricated structures, heavy-duty industrial assembly, and infrastructure development — especially where reach and mobility are critical.

• Fully suited to demanding environments where both stability and high lifting performance are required.

Summary in a Nutshell

The Zoomlion ZAT3500V is a high-capacity, highly mobile all-terrain crane offering exceptional reach, power, and operational flexibility. With a 350 t rating, long boom and jib extensions, and advanced engineering for on-site adaptability, it's a heavyweight in the construction and lifting machinery world.

Technical Specifications: Zoomlion ZAT3500V All‑Terrain Crane

Drawing from official datasheets and verified sources, here's a detailed breakdown of the ZAT3500V’s core technical specs:

General & Structural Data

• Model Number: ZAT3500V

• Drive Configuration: 6-axle chassis, wheel formula 12×4

• Vehicle Dimensions: Approx. 17 000 mm (L) × 3 000 mm (W) × 4 000 mm (H)

• Kerb (Unladen) Weight: 72 000 kg, with Gross Vehicle Mass up to 350 000 kg

Lifting & Boom Capabilities

• Maximum Rated Lifting Capacity: 350 ton

• Main Boom Length: 85 m

• Jib Length: 17.5 m

• Maximum Lifting Height: Up to 113 m when fully configured with jib

• Maximum Lifting Moment: 4 704 kN·m (approximately 480 t·m)

Mobility & Performance

• Top Driving Speed: 80 km/h

• Transmission: “Fast‑12 Shift” gearbox (12-speed)Counterweight: 49 t

Summary Table

Additional Insights

• Boom Design & Strength: While technical geometry isn't fully detailed, industry-standard oval-profile boom design likely contributes to exceptional load-bearing strength and bending resistance.

• Production Capacity: According to the data, production is limited to 1 unit per week, emphasizing its bespoke, high-spec nature (beimeimachinery.en.made-in-china.com).

• Operator Features: Though not specified in the sources, a crane of this level typically has advanced operator ergonomics, safety systems, and possibly an advanced hydraulic control system.
